replacing seals hydraulic cylinder

Replacing the seals in a hydraulic cylinder is a crucial maintenance task that ensures the longevity and efficient functioning of hydraulic systems. Although it may seem like a daunting process, with the right tools and a detailed guide, even individuals with moderate technical skills can perform this task. This comprehensive guide will delve into the reasons for replacing seals, the tools required, the step-by-step process, and tips for ensuring a successful seal replacement.

Hydraulic cylinders are essential components in various machines, from industrial equipment to heavy-duty vehicles. They create mechanical force in a linear motion and are instrumental in lifting, pushing, and pulling actions. With repeated use, the seals within these cylinders can become worn, leading to hydraulic fluid leaks and reduced system efficiency. Such leaks can cause not only operational inefficiency but also pose environmental hazards due to fluid spillage. Identifying when to replace hydraulic seals is crucial for maintaining machinery performance. Common signs include visible oil leaks, decreased lifting power, slow operation, and erratic movement of machinery. Once these symptoms appear, acting promptly can prevent more severe damage to the hydraulic system.

Before beginning the replacement process, assembling the necessary tools and equipment is essential. You'll require a set of spanners, a soft-faced hammer, seal picks, a gland removal tool, a clean work area, and protective gloves. Moreover, obtaining the exact replacement seals is paramount; using incorrect seals could result in improper functioning and further leakage. The first step in replacing hydraulic seals is to safely and adequately prepare the hydraulic system. Disconnect the power source to avoid accidental movements during the process. Drain the hydraulic fluid from the cylinder to prevent any spillage. Keeping the work area clean and organized will facilitate a smoother seal replacement process. Once the system is prepared, carefully remove the cylinder from the machinery. This often requires loosening the mounting bolts and disassembling connected components. With the cylinder safely removed, secure it in a vice or on a stable workbench, ensuring it is positioned for easy access to the piston rod. Disassembling the cylinder involves loosening the gland nut or retaining ring at the end of the cylinder barrel. Use the gland removal tool to carefully extract the rod assembly from the barrel. This process should be performed gently to avoid any damage to the internal components. Once removed, inspect the rod, piston, and other components for wear or damage.replacing seals hydraulic cylinder

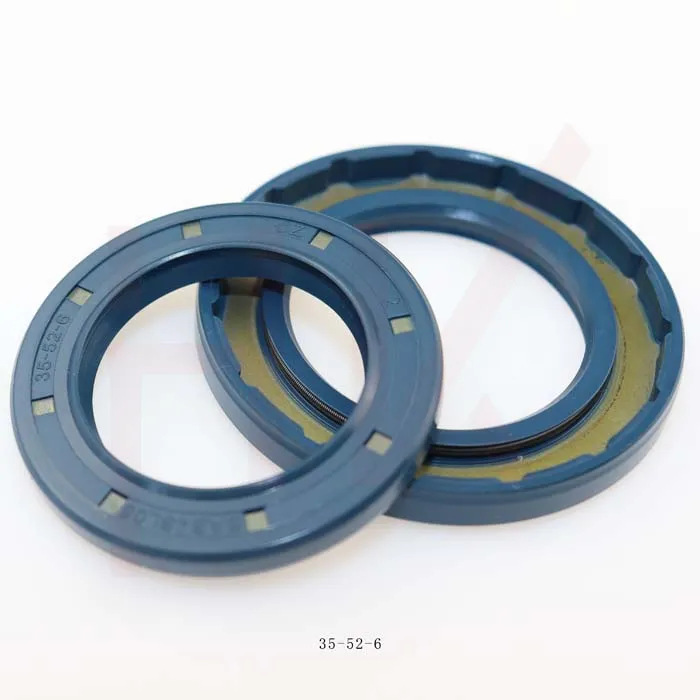

With the rod assembly accessible, use seal picks to remove the old seals from the rod, piston, and gland. Pay close attention to the order and orientation of the seals during removal; they must be re-installed in the same manner. Thoroughly clean all components, removing any debris or residual oil, ensuring that all parts are spotless before proceeding. Installing the new seals requires careful handling to avoid damage. Lubricate each seal lightly with the appropriate hydraulic fluid to facilitate the installation and prevent twisting or tearing. Starting with the innermost seals on the piston, work your way outwards, ensuring each seal is seated correctly and securely. Reassembly of the cylinder follows the inverse of the disassembly process. Carefully guide the rod assembly back into the cylinder barrel, taking care not to damage the new seals. Once seated, secure the gland nut or retaining ring and ensure all components are tightly fastened. After reassembling the cylinder, reintegrate it into the machinery. Reconnect all disassembled components, return the mounting bolts to their original positions, and refill the hydraulic system with the appropriate fluid. Bleeding the system to remove any air pockets is a crucial step that aids in restoring full operational efficiency. Thorough monitoring during the initial operation can help detect any remaining issues. Observe the cylinder for leaks and ensure the machinery operates smoothly and efficiently. Document the replacement process and any anomalies, as these records can be invaluable for future maintenance or troubleshooting. In conclusion, replacing seals in a hydraulic cylinder is a task that, while requiring care and precision, is approachable with the right knowledge and tools. Regular maintenance and timely seal replacement are vital for ensuring the efficient and safe operation of hydraulic machinery. By following these guidelines, you can preserve the integrity and performance of your hydraulic systems.
